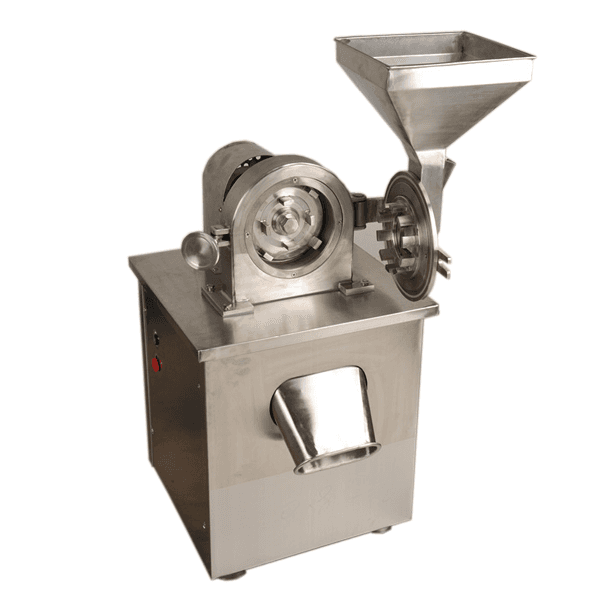

UF-250 Te Uihini Miihini Kawhero

Summary of Coffee bean grinder>>>

This machine is used in pharmaceutical, chemical, agriculture and food industry, raw material crushing, are pharmaceutical, hospitals, in pharmacies, family, individual restaurants, powdered spices and other processed foods ideal.

---

Working principle of Coffee bean grinder>>>

It uses the high-speed relative motion between the moving tooth set and regular tooth set, which makes the material. Crushed through concussion, rub and crush between the material .The structure of machine is simple, firm and operating stedily and the result of crushing is well. The crushed thing is discharged directly from mainframe, the size of the granularity is gained through changing different network of the whole stainless steel. Surface of the inside of the machine reaches smooth by tooling ,which changes the phenomenon of inboard wall coarse accumulating of power machine in the past ,it can accord with the national standard even more to make medicines, food, chemical industry , etc and meet the requirement of GMP.

[Technical parameters] >>>

kaha production	150-200kg / h
Te tere tere	3900r / min
Crushing fineness	20-120 mesh
He nui te whangai	40 mm ³
mana Motor	380V 5.5KW
ahu	650 * 600 * 1350mm
machine taimaha	180kg

---

Grinding Samples>>>

---

You can roast all the kinds of the bean color you would like .

Here are some pictures only for your reference .

---

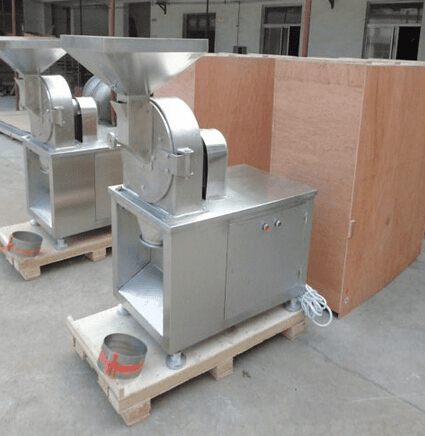

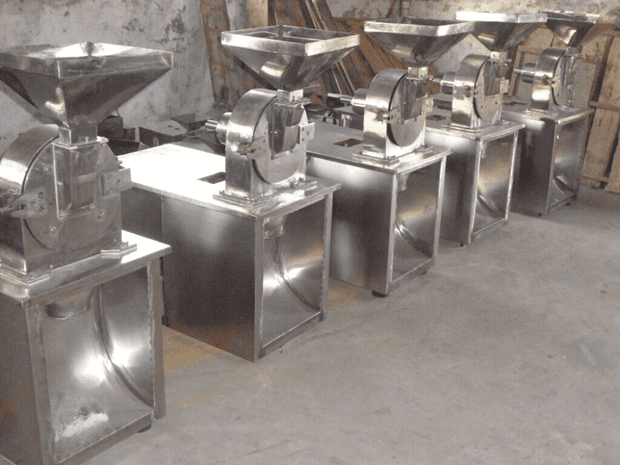

Ready to Deliver>>>

Whakapā Unit-Fine (UF) Na!
