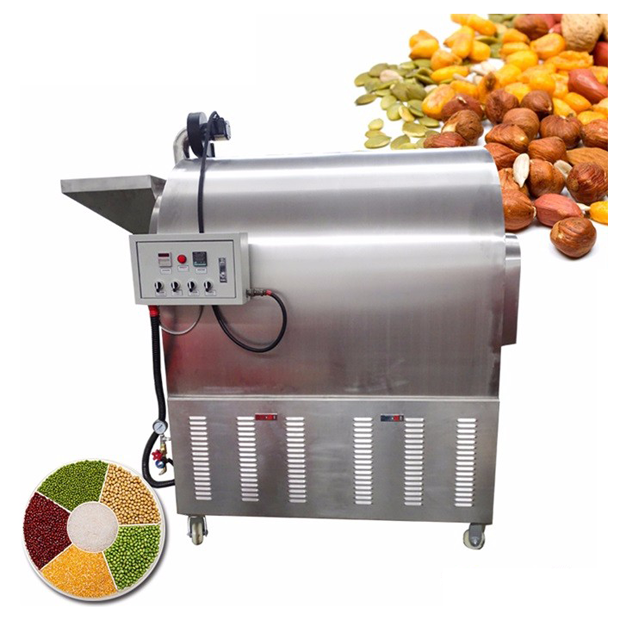

UFC mutukore Electric Aunoa Heating Roaster

Instruction of grain seeds roasting plant >>>
1).Use hanging electricity heating device in the inner tube, roast the nut by heating the air in the tube, so the
nut will not be roasted black.
2).There is a insulation outside the roller, so as to reserve the heat.
3).High working efficiency, 30kg chestnut will spend 30-40min, the electricity consumption is within 2deg.

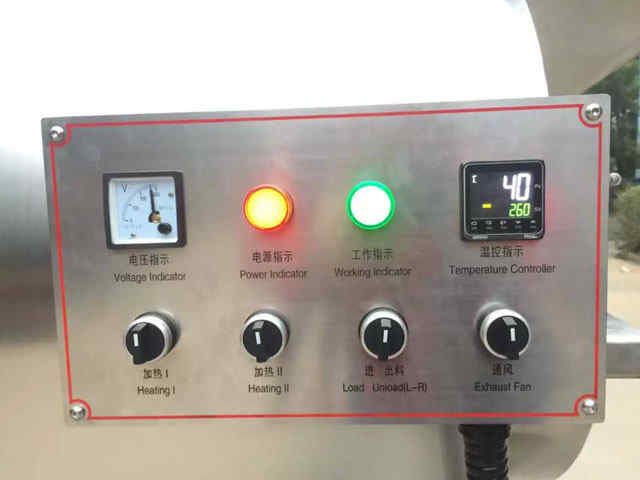

4).The temperature is adjustable, it is controlled by temperature controller
5).It is adaptable for different temperature demand of all kinds nut, such as chestnut, peanut, melon seeds, pine
nut, hazel, rapeseed, coffee bean, etc.
6).Low energy consumption.

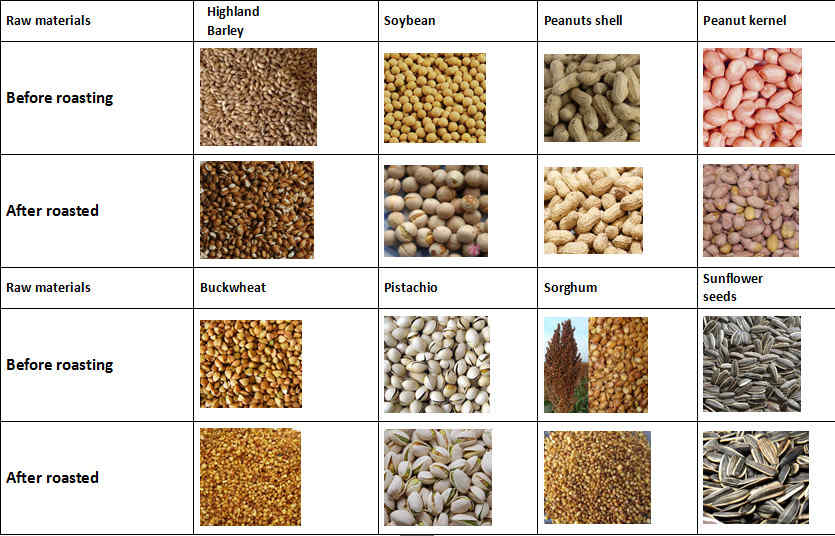

Use range>>>
1. nuts: peanut, sunflower, walnut, castor, soybean , watermelon seeds, pecans,pistachio nuts , white pumpkin seeds
etc
Grains: corn, wheat, black wheat, buckwheat, beans, coffee beans, cococa beans , castor , chilli seed etc.
Seasonings: Chinese prickly ash, fennel, anise etc.

2. Vegetables: all kinds of vegetables dehydration or tea drying

3. Medicinal materials: drying or steamed fry.

painga:
1.Electronic ignition, safe and fast.
2.Configuration gas pressure reducing valve, automatically ADAPTS to different sources of fuel gas pressure.
Guarantee stable fire.
3.Copper core gas furnace, life up to 5 years.
4.Steel chain drive, stable and low loss.
5.Low noise, gear meshing.
6.Auto exhaust fans.
7.All stainless steel, easy to clean, attractive and durable.

New technology features :

1.Patent quality of military products The operation is simple Safe and efficient

2. Without stopping, continuous making production stability

3. Heating medium (salt, sand) automatic high-speed separation, automatic feeding and keep recycle separation to
mixing from rolling drum, save manpower

4. Frequency conversion speed, multi-usage

Raraunga Hangarau:

tauira	UFQ30	UFQ50		UFQ100
Load/batch	25-30KG	35-50KG		80-100KG
Capacity/hour	50-80KG	100-120KG		150-200KG
Ahu (mm)	1200 * 700 * 1300	1350 * 900 * 1700		1500 * 1000 * 1700
Taumaha	200KG	350KG		550KG
tauira:	UFQ150	UFQ200		UFQ300
Load/batch	130-150KG	180-200KG		250-300KG
Ahu (mm)	1850 * 1000 * 1800	2300 * 1100 * 1800		3300 * 1100 * 1750
Taumaha	750KG	950KG		1150KG

Taiwhanga:

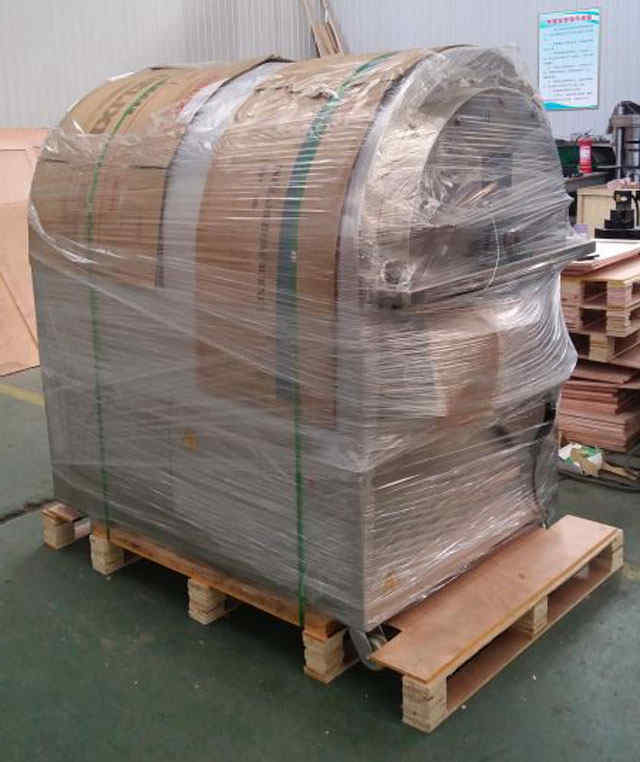

Packing:

Whakapā Unit-Fine (UF) Na!
